      Roboto DC- Nipple Hand Angle

      ● Hand-turn the rim back a little to
      allow the nipple hands to get
      between the spokes.
      ● Move the cursor to
      "NIPPLEHANDS ON SPOKES"

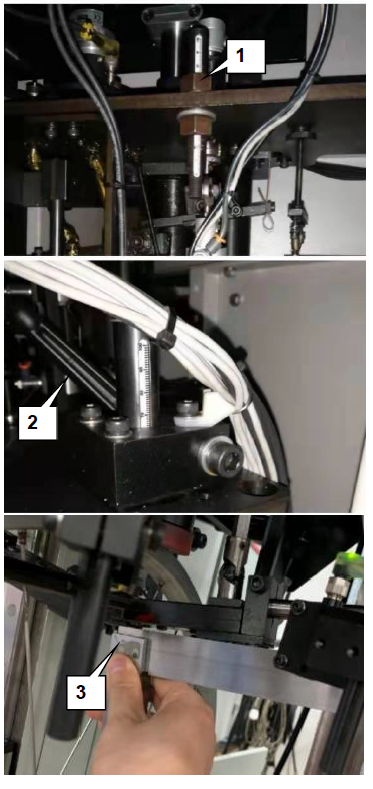

      ● Adjust the nipple hands angle
      with the nut(1) and handle(2).

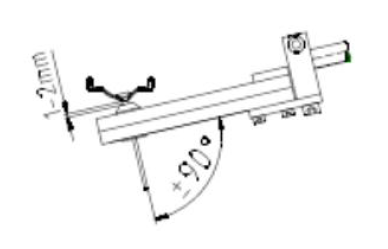

      ● Use a square ruler to check the
      axial angle of the nipple key. This
      should be 90° (3) to the spoke.
      ● Move the cursor to "NIPPLE
      KEYS ON NIPPLES" to adjust the
      distance between the nipple key
      and the rim 1 to 2mm.If necessary,
      loose the bolts (1) and handle(2).
