# Adjust upper guide rails

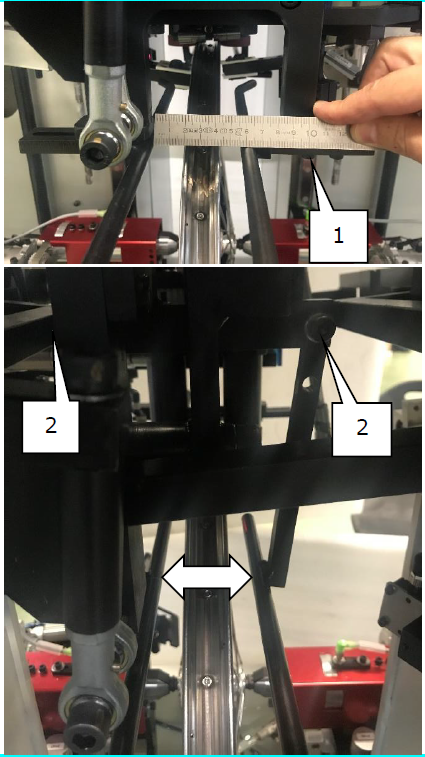

• Adjust width of upper front
guide rails to 60mm with
bolts (1). Make sure both
rails are equally divided in
relation to the rim.
• Adjust width of upper back
guide rails to 60mm with
bolts (2). Make sure both
rails are equally divided in
relation to the rim.

![](https://knowledgebase.hollandmechanics.com/hs-fs/hubfs/image-png-May-31-2024-12-37-49-9011-PM.png?width=425&height=757&name=image-png-May-31-2024-12-37-49-9011-PM.png)
