      Robot DT- Adjusting height position

      1. Initial Setup

        • Use a wheel to set the sensors to accommodate the highest rim available, with the standard maximum size of 32mm.

      2. Access the Test Menu

        • Navigate through the menu to select "TEACH IN A NEW WHEEL" and "LOAD WHEEL / ADJUST MACHINE."

      3. Place the Wheel

        • Insert the wheel into the machine and adjust the hub clamp height accordingly. Once properly adjusted, press the designated button to confirm.

      4. Rim Clamp Position Adjustment

        • Adjust the "RIMCLAMP POSITION" so that the rim drive rollers are positioned 2mm above the rim.

      5. Align the Spoke Sensor No. 1

        • Ensure that the transmitter and receiver of spoke sensor No.1 are aligned horizontally.

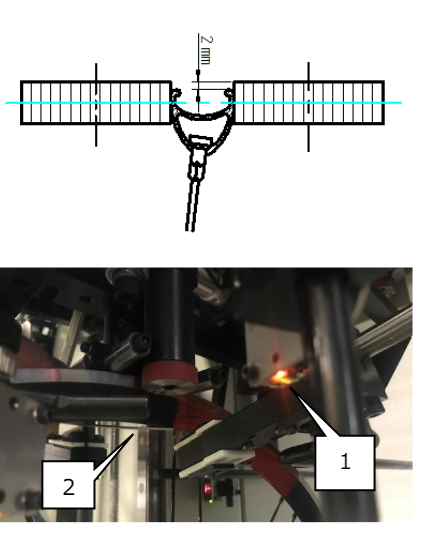

        • Adjust the height so that the red LED (1) turns ON when a 2mm Allen key (2) is placed just below the rim (refer to the image for guidance).

      6. Spoke Sensor Adjustment Reference

        • For detailed instructions on adjusting the spoke sensor, refer to the manual titled "How to Adjust Spoke Sensor."
