      Robot DD- Activating the E-hub function

      This function is used when the machine is operating with the E-hub. Normally, the E-hub turns counterclockwise; if it doesn’t, it can damage the E-hub.

      In the main menu, go to Auto

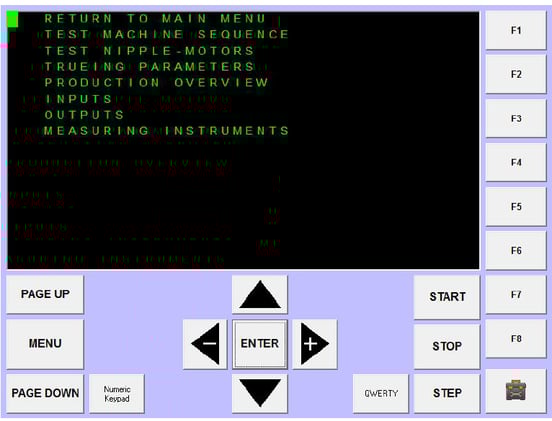

      On this page, find the option for "Trueing Parameters."

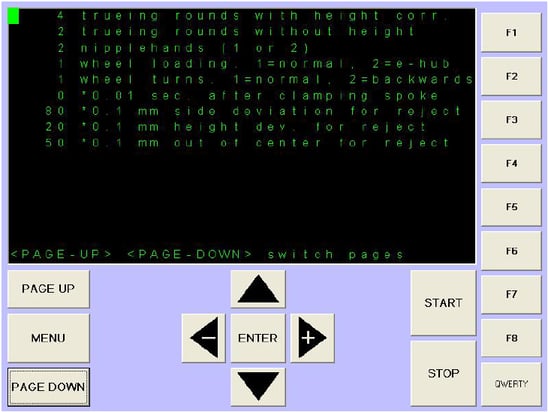

      In Trueing Parameters, press the Page Down button until you see this screen.

      On the screen, scroll down to the fourth line. The option Wheel Loading will be available. It is possible to specify if it is a normal wheel or an E-hub. If it is an E-hub, select the number 2 = E-hub.
