      Rim Taper HT- Tape Feed Sensor

      Correct Adjustment :

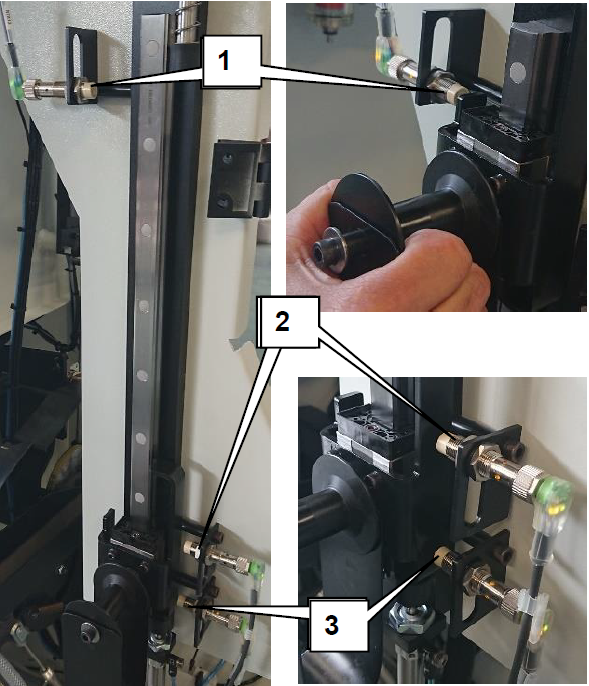

      Adjust sensor S8X4 (1). Sensor should go on when slide is moved up and starts touching the spring. Sensor S7X12 (2) must be just on when air cylinder is in upper position. Sensor S6X12 (3) must be on when slide is on cylinder end stop in lowest position.
