If something goes wrong, check if any sensor is out of position or if there's an issue with the driver.

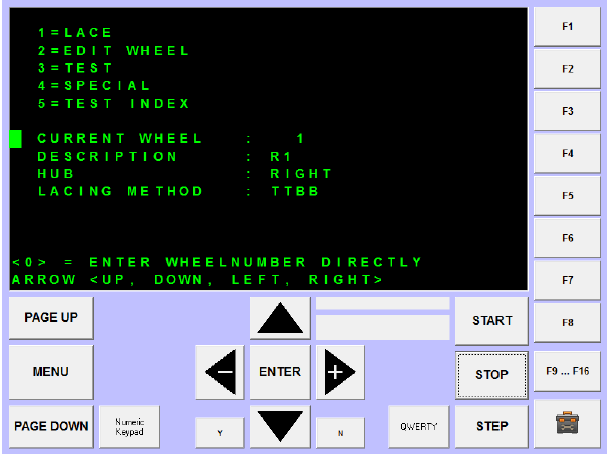

- Main Menu press 3 (Test)

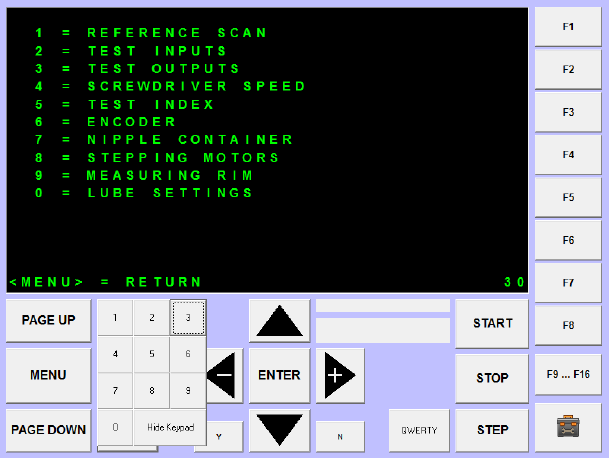

- Press the option related to stepping motors (8)

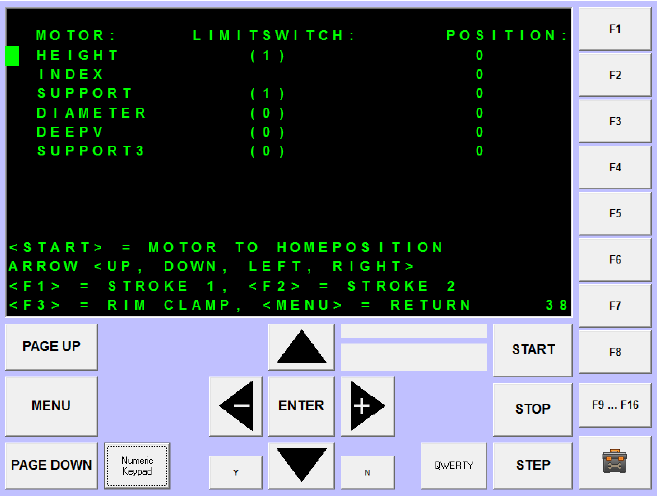

- Here, its possible to test all the stepping motors

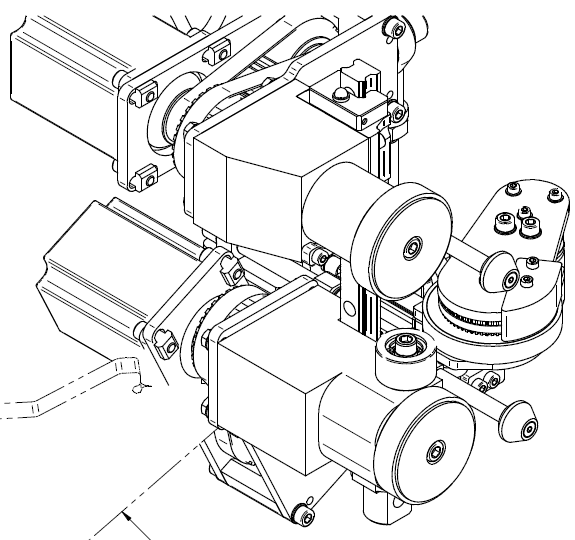

Check if all the stepping motors are working, adjust limit switches and grease spindles.
• Place the cursor in front of the line of your choice.
• Pressing <-◄ > or <►+> will make the motor move.
• Press and hold <-◄ > or <►+> makes the motor move at higher speed.
• You can return the motor to its starting (home) position by pressing <START>.
• Pressing <STOP> will stop the motor.
except for the index option, if you press Start the motor selected will return to the home position.
- In the index option it's possible see the motor turning
Each time you press the directional arrows <-◄ > or <►+> , the index on the screen should rotate by 1000 units.
