# Adjusting the needle pulse sensor

## When you notice that the lacing is no longer uniform and the rounds are significantly different from before, with some spokes tightened and others not, you need to make adjustments.

- <iframe data-hsv-src="https://play.hubspotvideo.com/v/5340083/id/159539183882" referrerpolicy="origin" sandbox="allow-forms allow-scripts allow-same-origin allow-popups" allow="autoplay; fullscreen;" style="position: absolute !important; width: 100% !important; height: 100% !important; left: 0; top: 0; border: 0 none; pointer-events: initial" title="HubSpot Video" loading="lazy" data-hsv-id="159539183882" data-hsv-style="" data-hsv-width="480" data-hsv-height="848" data-hsv-autoplay="false" data-hsv-loop="false" data-hsv-muted="false" data-hsv-hidden-controls="false" data-hsv-full-width="false"></iframe>

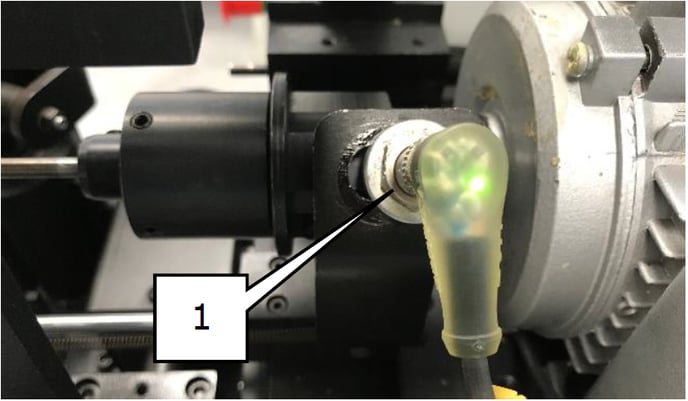

  Adjust the Needle Pulse Sensor (1) so that it is activated only at the edges of the hexagonal part of the screwdriver.
- Move the sensor back (toward the motor) so that it is no longer activated, but only when the needle is pushed in approximately 1.5 mm.

  ![](https://knowledgebase.hollandmechanics.com/hs-fs/hubfs/image-png-Sep-04-2024-05-21-00-5983-PM.png?width=670&height=391&name=image-png-Sep-04-2024-05-21-00-5983-PM.png)
- In the main menu, select a previously edited rim and navigate to the **“LACE WHEEL”** menu \<1\>. The machine will adjust itself for the appropriate rim.
- Set the number of turns for the first round of lacing to 60 (use the arrow keys).
- Press the **service** button. The machine will measure the rim and stop, waiting for the spoke in the spoke guide.
- If there is no nipple in the nipple block, press the **service** button twice.
- Take a single spoke and press it against the spoke guide. The screwdriver will turn the nipple onto the spoke.
- Ensure the top of the spoke is level with the bottom of the nipple slot. If necessary, adjust the Needle Pulse Sensor accordingly and check again.
- Reset the number of turns for the first round to the previous value.
