Robot DT- Adjust pitch nipple hands (manual)

• Select wheel already in use  “SELECT
WHEEL” and press <MENU>
to return to main menu.
• Go via test to “TEST
MACHINE SEQUENCE” and
set the cursor in front of the
line “STOP TURN WHEEL”.
• Place the current wheel in the
input rail.
• Once Wheel had stopped,
move cursor up to “INDEX
WHEEL”.

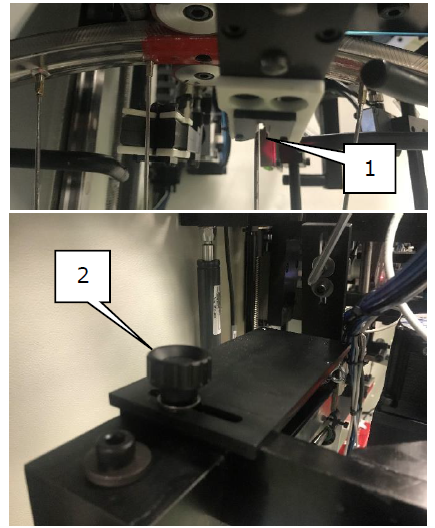

• Align nipple hands (1) with
spokes with knob (2) on
both sides.
