Robot DT- Adjust height nipple hands

• Select wheel W1 in “SELECT

WHEEL” and press <MENU>

to return to main menu.

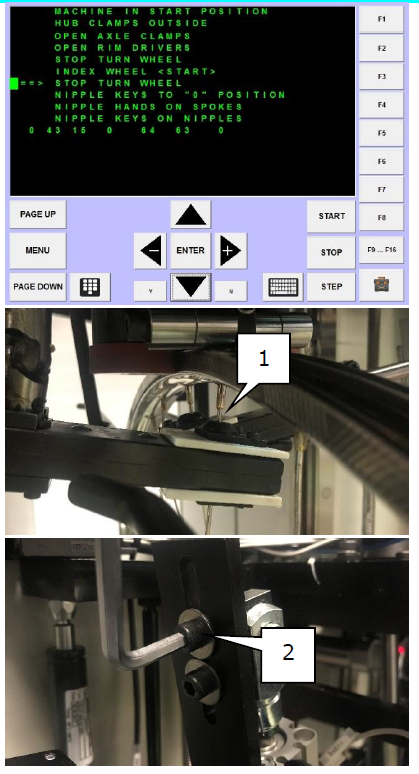

• Go via test to “TEST

MACHINE SEQUENCE” and

set the cursor in front of the

line “STOP TURN WHEEL”.

• Place wheel (W1) in the

input rail.

• Once Wheel had stopped,

move cursor up to “INDEX

WHEEL”

• Press <F7> to move nipple

hands in and adjust height

of the nipple hands. The top

of the nipple keys must be

5mm below the nipples (1).

• Use bolts (2) to adjust. Do

this for both sides.

• Press <F7> to move nipple

hands out.

• Remove wheel by moving

cursor up completely.
