      Rim Taper HT- Adjusting the tape guide

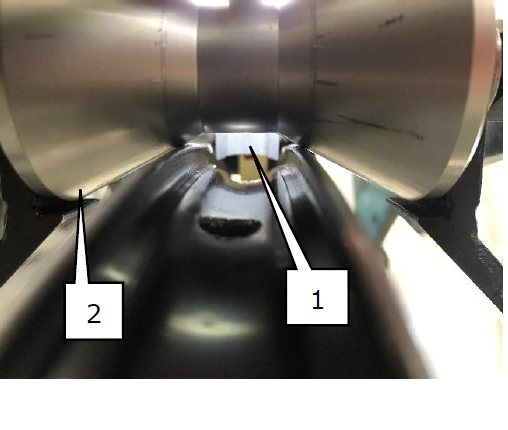

      Lower the tape unit 3x9 The tape guide must be in the center of the rim (1). Move position of the diabolo (2) to adjust. The space between the tape guide and the bottom of the rim must be at least 1mm, but as close as possible.
