CT: Machine is losing connectivity during lacing

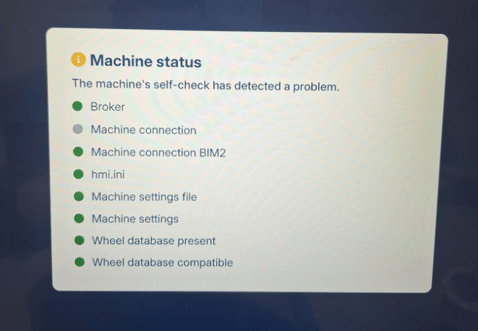

If the screen shows this error during lacing/operating the CT,

it can be a problem with the connections in the electric compartment.

Reasons of losing connectivity:

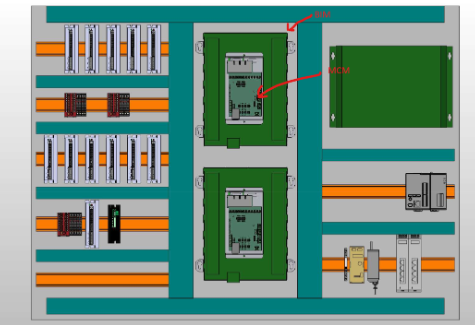

• Bad network connection (RJ45 cable between MCM and network switches).
• BIM or network switches loose power supply 24v and stop communicating (loose wire somewhere).
• BIM software freezes for some reason and does not respond anymore.

The first 2 items are just hardware related and must be checked by pulling wires and/or measuring the power supply 24V.

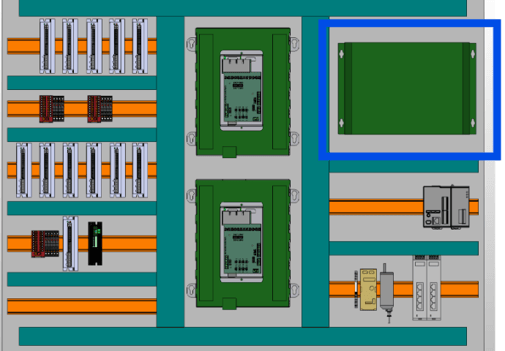

Next reason can be a broken main computer
