# Lacing ISL - Nipple block touching the rim

## Nipple block touching/scratches the rim

To avoid the nipple block from getting stuck inside a nipple hole or touching/scratching the rim, you have to adjust the stroke limiter.

• Program the machine with the highest rim profile you are running.

• Place this rim and press F3 to clamp it.

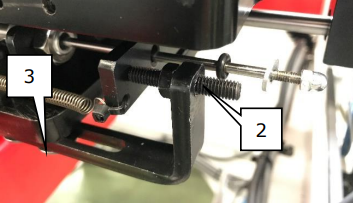

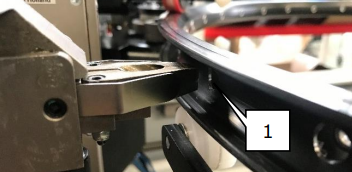

• Slide nipple block towards rim. Distance (1) must be min 4mm. Adjust distance with bolt (2). If necessary, move bracket with bolts (3).

![](https://knowledgebase.hollandmechanics.com/hs-fs/hubfs/image-png-Jun-06-2024-09-20-38-3425-AM.png?width=352&height=172&name=image-png-Jun-06-2024-09-20-38-3425-AM.png)![](https://knowledgebase.hollandmechanics.com/hs-fs/hubfs/image-png-Jun-06-2024-09-21-19-8710-AM.png?width=353&height=203&name=image-png-Jun-06-2024-09-21-19-8710-AM.png)

In this case the adjustment is finished and the nipple block remains in front of the rim.
