Lacing CE-A - Changing the nipple guide spring

After long use, this spring loses its strength, so it needs to be replaced.

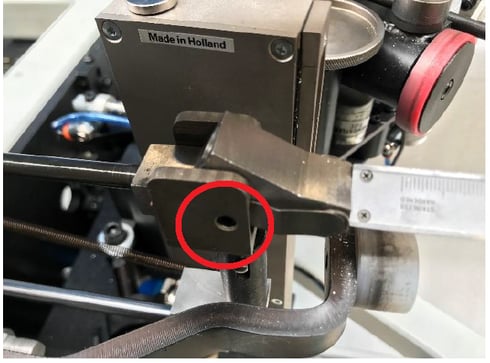

Take a 3mm Allen key and use it to loosen this screw:

Don't forget there's the same screw on the other side, loosen that one too. Once you remove the screw, the rest of the components will come off easily.

be careful with small parts, replace and reassemble in the same way you removed them. When replacing the springs, some force is needed to fit the metal plate over the internal conical ball of the nipple guide, so there's no need for concern.
