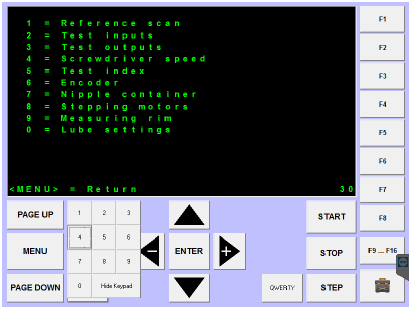

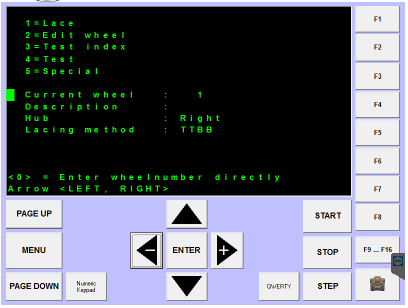

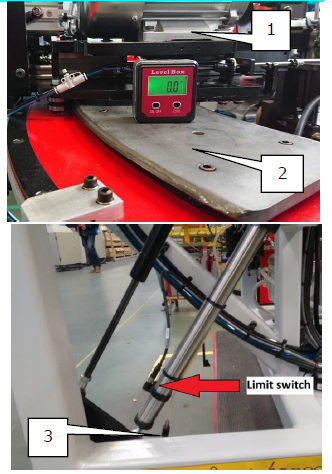

--- title: "Inline Lacer (CN): Motor Tilt Adjustment" description: Before every adjust focused in stepper motor. use this function 4= test 8= Stepping motors * Motor Tilt  Press <START> and the motor should move downwards to the home position. The position of the l --- [Skip to content](https://knowledgebase.hollandmechanics.com/knowledge/inline-lacer-cn-motor-tilt#main-content) English Show submenu for translations [Contact us](https://knowledgebase.hollandmechanics.com/knowledge/kb-tickets/new?hsLang=en) [Customer portal](https://customerportal.hollandmechanics.com/tickets-view?hsLang=en) ![HMLogo RGB high res.png\]](https://knowledgebase.hollandmechanics.com/hs-fs/hubfs/HMLogo%20RGB%20high%20res.png?height=48&name=HMLogo%20RGB%20high%20res.png) Open main navigation Close main navigation - English Show submenu for translations - [Contact us](https://knowledgebase.hollandmechanics.com/knowledge/kb-tickets/new) - [Customer portal](https://customerportal.hollandmechanics.com/tickets-view) - Go to hollandmechanics.com Go to hollandmechanics.com Seek Machine Wisdom Here - There are no suggestions because the search field is empty. 1. [Help Center](https://knowledgebase.hollandmechanics.com/knowledge?hsLang=en) 2. [General Lacing](https://knowledgebase.hollandmechanics.com/knowledge/general-lacing?hsLang=en) 3. [Adjustments](https://knowledgebase.hollandmechanics.com/knowledge/general-lacing?hsLang=en#adjustments) # Inline Lacer (CN): Motor Tilt Adjustment Before every adjust focused in stepper motor, use this function 4= test ![](https://knowledgebase.hollandmechanics.com/hs-fs/hubfs/image-png-Aug-08-2024-06-31-26-2005-PM.png?width=408&height=308&name=image-png-Aug-08-2024-06-31-26-2005-PM.png) 8= Stepping motors ![](https://knowledgebase.hollandmechanics.com/hs-fs/hubfs/image-png-Aug-08-2024-06-33-22-2464-PM.png?width=413&height=313&name=image-png-Aug-08-2024-06-33-22-2464-PM.png) **\* Motor Tilt**  Press \ and the motor should move downwards to the home position. The position of the limit switch is correct when the base plate of the screwdriver unit (2) is level with the upper beam of the machine frame (1) in the “MACHINE START POSITION”. To test, proceed as follows: - Press **2x \** to return to the main menu. - Select menu **\<2\> EDIT WHEEL**. - Press **3x \**. The machine will move the stepper motors to the “MACHINE START POSITION”. - Place the inclinometer on the upper beam of the frame (1) and reset it to 0°. - Place the inclinometer on the screwdriver base plate (2) and check the angle. It must also be 0°. - If this is not the case, adjust the limit switch accordingly. - Move the cursor to the line **ANGLE VERTICAL** and press **\**. The motor will move to the home position and back. - Check the angle again and, if necessary, repeat this procedure. - Press **\** to exit the **EDIT WHEEL** menu. - Grease the spindle on the grease nipple (3) while moving the motor up and down. • ![](https://knowledgebase.hollandmechanics.com/hs-fs/hubfs/image-png-Aug-08-2024-06-39-32-5407-PM.png?width=332&height=474&name=image-png-Aug-08-2024-06-39-32-5407-PM.png) - [General Lacing](https://knowledgebase.hollandmechanics.com/knowledge/general-lacing?hsLang=en#main-content) - [setup](https://knowledgebase.hollandmechanics.com/knowledge/general-lacing?hsLang=en#setup) - [Troubleshooting](https://knowledgebase.hollandmechanics.com/knowledge/general-lacing?hsLang=en#troubleshooting) - [Adjustments](https://knowledgebase.hollandmechanics.com/knowledge/general-lacing?hsLang=en#adjustments) - [General Stabilizing/Stressing](https://knowledgebase.hollandmechanics.com/knowledge/general-stabilizing-stressing?hsLang=en#main-content) - [Adjustments](https://knowledgebase.hollandmechanics.com/knowledge/general-stabilizing-stressing?hsLang=en#adjustments) - [General Trueing](https://knowledgebase.hollandmechanics.com/knowledge/general-trueing?hsLang=en#main-content) - [Troubleshooting](https://knowledgebase.hollandmechanics.com/knowledge/general-trueing?hsLang=en#troubleshooting) - [Adjustments](https://knowledgebase.hollandmechanics.com/knowledge/general-trueing?hsLang=en#adjustments) - [Hub Filling Stations](https://knowledgebase.hollandmechanics.com/knowledge/hub-filling-stations?hsLang=en#main-content) - [Hub Setup](https://knowledgebase.hollandmechanics.com/knowledge/hub-filling-stations?hsLang=en#hub-setup) - [Troubleshooting](https://knowledgebase.hollandmechanics.com/knowledge/hub-filling-stations?hsLang=en#troubleshooting) - [Lacing CE-A](https://knowledgebase.hollandmechanics.com/knowledge/lacing-ce-a?hsLang=en#main-content) - [Maintenance](https://knowledgebase.hollandmechanics.com/knowledge/lacing-ce-a?hsLang=en#maintenance) - [Lacing CD-A](https://knowledgebase.hollandmechanics.com/knowledge/lacing-cd-a?hsLang=en#main-content) - [Maintenance](https://knowledgebase.hollandmechanics.com/knowledge/lacing-cd-a?hsLang=en#maintenance) - [HT - Taping Machine](https://knowledgebase.hollandmechanics.com/knowledge/ht-taping-machine?hsLang=en#main-content) - [Troubleshooting](https://knowledgebase.hollandmechanics.com/knowledge/ht-taping-machine?hsLang=en#troubleshooting) - [Robot DC / DD](https://knowledgebase.hollandmechanics.com/knowledge/robot-dc-dd?hsLang=en#main-content) - [Wheel Setup](https://knowledgebase.hollandmechanics.com/knowledge/robot-dc-dd?hsLang=en#wheel-setup) - [Robot DT](https://knowledgebase.hollandmechanics.com/knowledge/robot-dt?hsLang=en#main-content) - [Maintenance](https://knowledgebase.hollandmechanics.com/knowledge/robot-dt?hsLang=en#maintenance) - [FE - Tire Mounting Machine](https://knowledgebase.hollandmechanics.com/knowledge/fe-tire-mounting-machine?hsLang=en#main-content) - [Troubleshooting](https://knowledgebase.hollandmechanics.com/knowledge/fe-tire-mounting-machine?hsLang=en#troubleshooting) - [Calibration](https://knowledgebase.hollandmechanics.com/knowledge/calibration?hsLang=en#main-content) - [Touch PC](https://knowledgebase.hollandmechanics.com/knowledge/calibration?hsLang=en#touch-pc) - [Maintenance](https://knowledgebase.hollandmechanics.com/knowledge/maintenance?hsLang=en) - [Moon Driver](https://knowledgebase.hollandmechanics.com/knowledge/moon-driver?hsLang=en#main-content) - [Troubleshooting](https://knowledgebase.hollandmechanics.com/knowledge/moon-driver?hsLang=en#troubleshooting) - [Troubleshooting](https://knowledgebase.hollandmechanics.com/knowledge/troubleshooting?hsLang=en) - [Lacing Machines](https://knowledgebase.hollandmechanics.com/knowledge/lacing-machines?hsLang=en#main-content) - [General Lacing](https://knowledgebase.hollandmechanics.com/knowledge/lacing-machines?hsLang=en#general-lacing) - [CE-A Lacing Machine](https://knowledgebase.hollandmechanics.com/knowledge/lacing-machines?hsLang=en#ce-a-lacing-machine) - [General Tire Mounting](https://knowledgebase.hollandmechanics.com/knowledge/general-tire-mounting?hsLang=en#main-content) - [Troubleshooting](https://knowledgebase.hollandmechanics.com/knowledge/general-tire-mounting?hsLang=en#troubleshooting) - [Wheel Building](https://knowledgebase.hollandmechanics.com/knowledge/wheel-building?hsLang=en#main-content) - [Hub Filling](https://knowledgebase.hollandmechanics.com/knowledge/wheel-building?hsLang=en#hub-filling) - [General Taping/Stabilizing](https://knowledgebase.hollandmechanics.com/knowledge/general-taping-stabilizing?hsLang=en#main-content) - [Adjustments](https://knowledgebase.hollandmechanics.com/knowledge/general-taping-stabilizing?hsLang=en#adjustments) - [Troubleshooting](https://knowledgebase.hollandmechanics.com/knowledge/general-taping-stabilizing?hsLang=en#troubleshooting) - [Set Up](https://knowledgebase.hollandmechanics.com/knowledge/set-up?hsLang=en) - [General Hub Filling](https://knowledgebase.hollandmechanics.com/knowledge/general-hub-filling?hsLang=en#main-content) - [Adjustments](https://knowledgebase.hollandmechanics.com/knowledge/general-hub-filling?hsLang=en#adjustments) - [Floorline MJ-A](https://knowledgebase.hollandmechanics.com/knowledge/floorline-mj-a?hsLang=en#main-content) - [Troubleshooting](https://knowledgebase.hollandmechanics.com/knowledge/floorline-mj-a?hsLang=en#troubleshooting) [![Chill listening crop-3](https://knowledgebase.hollandmechanics.com/hs-fs/hubfs/HMLogo%20RGB%20high%20res-1.png?width=85&height=30&name=HMLogo%20RGB%20high%20res-1.png "Chill listening crop-3")](https://knowledgebase.hollandmechanics.com/knowledge?hsLang=en) hollandmechanics.com Help Center Copyright © 2026, Holland Mechanics
