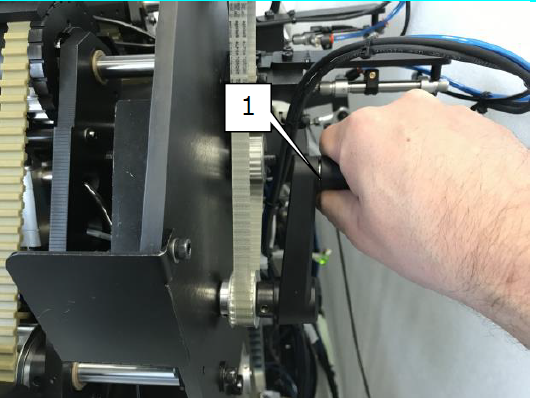

• Adjust the mobile spoke guide plate, using the crank (1).

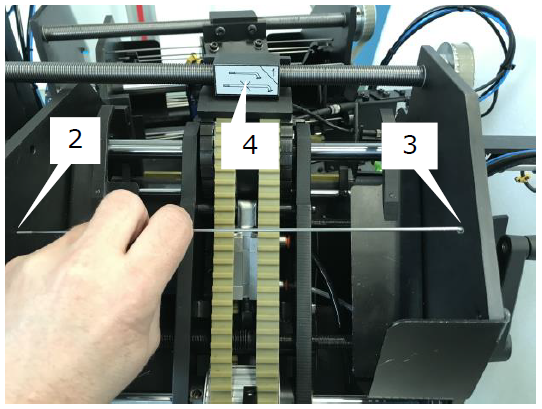

• Insert the required spoke type with its tip against the mobile plate (2), and adjust until there is a 5-10 mm gap between spoke-head and outer plate (3).
Note:
The spoke trays are marked, to indicate which must be filled with long spokes and which with short spokes, for filling hubs with spokes of two different lengths.
• Fill the 4 spoke containers up to 500 pieces max. , position as indicated on the label (4).
• Close the protective covers.
• End the step-mode by pressing <STEP>
• Answer SPOKE UNITS ADJUSTED? Y/N with ‘YES’
Note:
Various machine components will be set up, and the conveyor belt will start turning. The message: 'NO HUB IN LOADING CLAMP ' will appear on screen if no hub has been loaded. This message will disappear as soon as a hub rolls into the loading clamp. The hub loading clamp inserts the hub between the hub supports, which grip it. The filling cycle commences.
If no hubs are placed on the conveyor belt, it will stop turning after a certain period of time and the following message will appear:
* 'NO HUB ON CONVEYOR BELT'
* 'START COVEYOR BELT WITH GREEN BUTTON'.
